FlowDiT

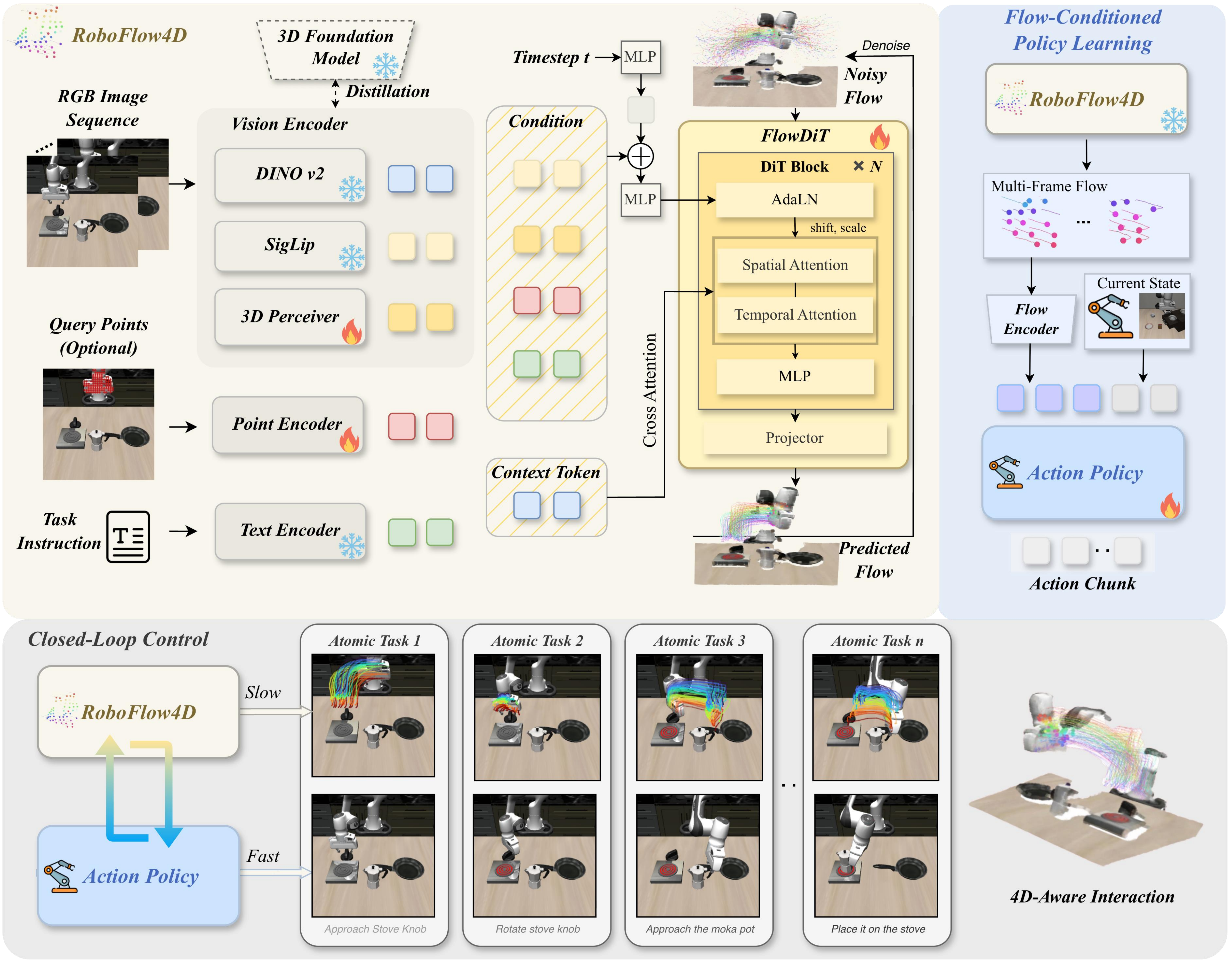

RGB, point, and text tokens to multi-frame 3D flow
The model encodes observations and task instructions, predicts future 3D flow, and feeds that flow into a policy for action generation.
World Model
RoboFlow4D.
A lightweight flow world model that predicts future multi-frame 3D flows and guides real-time robotic manipulation.
01
Planning in 3D Space
Interactive task examples show flow-conditioned planning for manipulation scenes.
02
Pipeline
RGB, points, and language are fused to predict future 3D flow and guide action.
03
Videos and Results
Simulation videos, real-robot videos, and benchmark tables are reproduced below.
Planning in 3D Space
Predicted flow becomes a spatial plan.
RoboFlow4D treats world modelling as a closed loop between observation, prediction, and execution. Given a visual sequence and language instruction, the model predicts future multi-frame 3D flow that describes how task-relevant geometry should move.
The original project page includes interactive 3D demos for household manipulation tasks such as Moka Pot, Drawer, Book to Caddy, and Push Cube. The local page keeps the task structure and links back to the live project resources.
Pipeline
A lightweight flow world model for real-time manipulation.
Closed loop
Slow planner, fast executor
RoboFlow4D acts as a predictive planner, while the action policy executes conditioned on both robot state and explicit flow.
+6.2 / +11.0
Average success-rate gains reported over base policies on LIBERO and ManiSkill3.
120x
Reported planning speedup compared with modular flow-planning pipelines.
< 1s
Goal-oriented planning latency aimed at real-time robot deployment.
Simulation Videos
Flow-conditioned policy rollouts in benchmark tasks.
LIBERO Object
Cream cheese to basket
LIBERO Object
Milk to basket
LIBERO Spatial
Bowl on cabinet to plate
LIBERO Spatial
Bowl on ramekin to plate
LIBERO Goal
Open drawer and place bowl
LIBERO Goal
Cream cheese to bowl
LIBERO Long
Both moka pots on stove
LIBERO Long
Two mugs to two plates
Real-World Videos
Robot manipulation with predicted flow.
Real robot
Cup insertion
Pick up the brown cup and insert it into the black cup.
Real robot
Pick-and-place assembly
Place an object into the target workspace with flow-guided control.
Real robot
Drawer manipulation
Open the top drawer, place the red cube inside, and close it.
Real robot
Stacking
Pick up the red cube and place it on the blue cube.
Quantitative Results
Benchmark gains with RoboFlow4D guidance.
| Method | Spatial | Object | Goal | Long | Average |
|---|---|---|---|---|---|
| Octo | 78.9 | 85.7 | 84.6 | 51.1 | 75.1 |
| SpatialVLA | 88.2 | 89.9 | 78.6 | 55.5 | 78.1 |
| 4D-VLA | 88.9 | 95.2 | 90.9 | 79.1 | 88.6 |
| DP | 81.6 | 91.5 | 78.4 | 64.0 | 78.9 |
| DP + RoboFlow4D | 89.8 | 93.2 | 85.2 | 72.0 | 85.1 |
| DiT | 84.2 | 96.3 | 85.4 | 68.8 | 83.7 |
| DiT + RoboFlow4D | 90.2 | 97.0 | 88.4 | 75.2 | 87.7 |
Real-world DP gain
+12.5 average success
RoboFlow4D improves DP real-robot average success while reducing average completion time in the reported tasks.
Real-world DiT gain
+11.3 average success
The same flow guidance improves DiT across pick-and-place, stack, assemble, and drawer scenarios.
Deployment
Lightweight world modelling
The system is designed to make predictive 3D motion practical inside a robot control loop.
